Ever wonder what quietly keeps fluid from rushing backward? A check valve. It stops backflow to protect pumps and cut costly damage. Non-slam “silent” designs also tame water hammer. In this post, you’ll learn Check Valves: Types, Purpose and Function—and how to pick the right one.
A check valve is a self-acting device; it lets flow move one way, blocks reverse. It opens under forward pressure, then shuts once pressure drops or flips. Pumps stay safe, leaks shrink, energy loss falls. Silent or non-slam styles curb shock.
The “unsung hero” idea: tiny part, big job. It keeps systems calm, budgets healthy.
Where we see it most
Water distribution and plumbing, including high-rise supply.
Industrial process lines, chemical and O&G.
Power generation networks and boiler loops.
Marine context: UNIVALVE supplies Marine Valve solutions for ship systems; a butterfly valve often handles isolation, a check valve prevents backflow in the same loop.
| Part | What it does | Quick tip |
|---|---|---|
| Body | Holds internals, sets path | Match end connections to pipe spec |
| Seat | Seals against disc | Look for wear, debris risk |
| Disc | Moves to open/close | Stability reduces chatter |
| Cover | Access for service | Check gasket integrity |
Source details on core components.
Cracking pressure: minimum upstream push needed to open. Size it to normal head; avoid flutter.
Pressure drop: energy cost across the valve; swing and tilting-disc styles often run low ΔP.
Non-slam / silent: spring-assisted closure for quiet, fast shut; cuts surge risk.
Water hammer: shock from sudden stop; silent designs help.
Material angle: harsh fluids or sea duty? A stainless steel valve resists corrosion while a check valve guards the line—good pairing for UNIVALVE marine service.
Reverse flow hurts gear. It can spin pumps backward, snap couplings, wreck seals. A check valve shuts on time, keeps flow one way, saves money, cuts waste. Silent designs soften shock, lower noise in tight systems.
| Failure risk | System effect | How a check valve helps | Payoff |
|---|---|---|---|
| Reverse rotation | Pump damage, hot bearings | One-way shutoff during reversal | Fewer repairs, safer starts |
| Water hammer | Pipe vibration, loud slam | Non-slam spring closure before reversal | Quieter lines, fewer leaks |
| Loss of prime | Dry start, cavitation | Foot valve holds column at suction | Easier restarts, pump protection |
| Cross-flow | Contamination, off-spec product | Tight seating under backpressure | Cleaner media, compliance |
| Energy drift | Recirculation, extra head loss | Lower ΔP style for duty | Lower bills, stable curves |
Fewer emergency stops, fewer seal swaps
Bearings last longer, shafts stay straight
Less chatter, fewer callouts during nights
High-rise risers, long vertical mains
Municipal and industrial pumping stations
Boiler feed loops, chilled and hot water circuits
Shipboard services in marine duty; LNG or methanol lines use non-slam styles for gentle closure
Each card below covers mechanism, advantages, trade-offs, uses, selection cues.
| Type | Best for | Watch outs |
|---|---|---|
| Swing | Large lines, low pressure drop | Weak under strong pulsation |
| Lift or piston | High pressure, guided sealing | Horizontal install needed |
| Ball | Dirty fluids, low service | Horizontal runs need spring or backpressure |
| Inline spring-loaded or nozzle | Pump discharge, water-hammer control | Slightly higher head loss than swing |
| Tilting-disc | Variable flow, low pressure drop | Check losses at very high velocity |
| Y-pattern | Smoother passage, lower turbulence | Verify size for target velocity |
| Wafer or dual-plate | Tight spaces, quick shut | Confirm flange fit, low delta P goal |
Mechanism: hinged disc swings clear under forward flow, returns on reversal
Advantages: simple build, few parts, easy service, low pressure drop
Trade-offs: weaker seal than lifting styles, not ideal for pulsation
Typical uses: water and wastewater distribution
Selection cues: favor big pipe sizes and low head loss; add lever or spring if reversal risk rises
Mechanism: disc or piston lifts vertically from the seat; guided motion holds alignment
Advantages: tight shutoff at high pressure and velocity
Trade-offs: higher resistance than swing; horizontal piping preferred
Typical uses: boiler feedwater, steam, oil transmission
Selection cues: choose for tough pressure envelopes; plan horizontal install
Mechanism: a spherical ball moves on and off the seat; spring option speeds return
Advantages: simple, robust, low service; rolling ball sweeps debris from the seat
Trade-offs: horizontal runs need backpressure or a spring to ensure closure
Typical uses: vertical risers, slurry, sewage, wastewater, lines with solids
Selection cues: go vertical when possible; add spring for horizontal layouts
Mechanism: spring drives the disc closed before reversal; short guided stroke
Advantages: fast, quiet closure; strong fix for water hammer in pumped service
Trade-offs: disc sits in the stream; head loss a bit higher than swing
Typical uses: potable supply, hydronic loops, clean process, pump discharge
Selection cues: pick where noise limits apply; size for pump ramp and target velocity

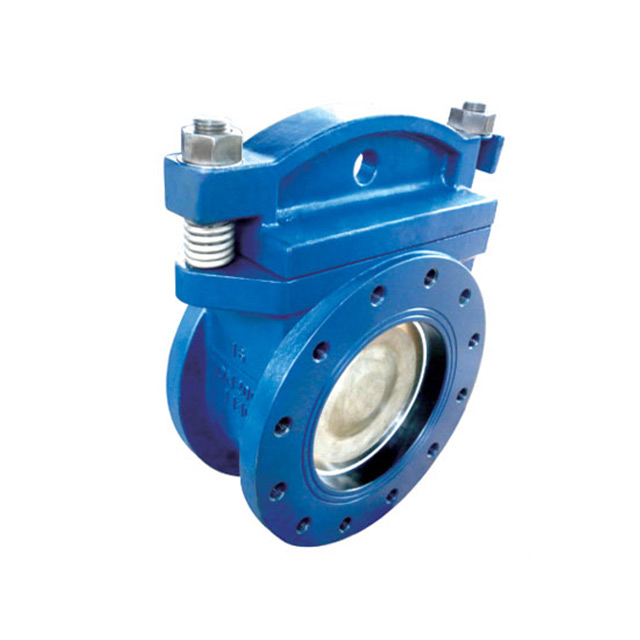

Mechanism: disc pivots near center; flow passes over and under; closure stays smooth
Advantages: stable under changing flow; low drop at normal rates; reduced slam risk
Trade-offs: watch pressure loss at very high velocity
Typical uses: power plants, petrochemical, high-flow water grids
Selection cues: aim for broad duty cycles and long mains; confirm loss at peak load
Mechanism: angled body forms a Y; internals travel on an angled path
Advantages: smoother passage, reduced turbulence and wear
Trade-offs: confirm sizing for planned velocity band
Typical uses: steam, water, gas lines that need steady flow
Selection cues: use when both pressure and flow vary; pair to dashpots if reversal gets severe
Mechanism: two half-discs fold on a center shaft; plates collapse fast on reversal
Advantages: small, light, easy fit between flanges; short travel lowers noise
Trade-offs: verify sealing under very low differential pressure
Typical uses: HVAC, fire protection, retrofits where space stays tight
Selection cues: check flange standard and face-to-face; target compact installs where quick shut helps
A check valve opens once upstream pressure beats downstream plus spring force. It closes once flow slows or reverses. Pick cracking pressure to match the system. Low pressure drop system needs a low value for easy opening. High pressure drop loop needs a higher value to stop chatter.
Quick guide
Gravity or low lift systems: low cracking pressure for easy starts
Pumped service: medium setting for steady travel
High pressure service: higher setting for firm seating
Flow moves one way. The disc, ball, or piston lifts from the seat. Reverse flow pushes the element onto the seat. A spring speeds closure. A good seat gives tight shutoff and less wear. This is core check valve functionality inside Check Valves: Types, Purpose and Function.
Ball checks: vertical run works best. Horizontal run needs backpressure or a spring for closure
Lift or piston checks: horizontal run preferred for alignment and clean seating
Straight pipe: keep several pipe diameters before circulators, elbows, tees, strainers. Less turbulence, less disc chatter, better life
Placement checklist
Away from pump discharge spikes
Room for service access
Strainer before a foot valve on a suction line
Slam comes from rapid reversal and late closure. Silent or non slam checks close fast and cut surges. A hydraulic damper or dashpot cushions motion near the seat. Variable speed pumps lower start and stop shocks.
Step 1. Define the job
Flow rate and pressure profile
Backflow risk and shutdown events
Fluid type and temperature, material fit
Step 2. Set cracking pressure
Low pressure drop system → low cracking pressure for easy opening
High pressure service → higher setting for firm sealing and stable travel
Step 3. Plan layout
Orientation: vertical or horizontal
Space limits: face to face, weight, access
Noise rules near rooms or decks
Step 4. Size to stop chatter
Avoid oversizing; keep the disc stable at normal flow
Target steady open position; no flutter, no repeat cycling
Step 5. Reliability goals
Maintenance windows, spare parts, service tools
Codes or approvals for the site
| Duty or constraint | Recommended types | Why it works | Notes |
|---|---|---|---|
| Clean, steady flow | Swing; wafer or dual-plate | Low pressure drop; simple upkeep | Great for large lines |
| Pulsating flow or fast reversals | Inline spring-loaded or nozzle; tilting-disc | Fast closure; non slam behavior | Good near pump discharge |
| High pressure sealing | Lift or piston | Guided disc; tight seat | Horizontal run preferred |
| Dirty or gritty fluids | Ball | Rolling ball sweeps the seat | Vertical run works best |
| Tight space | Wafer or dual-plate | Slim body; light weight | Check flange match |
| Vertical riser | Ball; inline spring-loaded | Gravity assist or spring assist | Add spring for horizontal runs |
| Steam or gas service | Lift or piston; tilting-disc | Guided motion; stable at speed | Confirm pressure class |
Frequent starts and stops on the pump line
Big elevation changes across the loop
Long vertical mains in high rise supply
Stations where people work nearby
Use a hydraulic damper or dashpot for extra cushioning near closed position
Pair to variable speed pumps; lower start and stop shock
Material choice drives life, safety, cost. We match media, temperature, pressure, corrosion risk.
| Material | Temperature note | Corrosion note | Pressure note | Where it fits | Good pairings |
|---|---|---|---|---|---|
| PVC or CPVC | PVC for cold to warm service; CPVC handles hotter lines | Strong resistance to many salts and bases; not for many solvents | Moderate ratings | Water treatment, pools, light chemical duty | Ball check, wafer, small swing |
| Bronze or brass | Stable under hot water and many oils | Bronze resists seawater; brass may dezincify in harsh chlorides | Moderate | Marine systems, HVAC, potable lines | Swing, SDNR on small to mid sizes |
| Cast iron or ductile iron | Good for ambient water service | Needs coating in corrosive duty | Ductile iron higher strength than gray iron | Municipal mains, fire loops | Swing, tilting disc, dual plate |
| Stainless steel | Works from cold to hot service | Strong resistance to corrosion; 316 favored near seawater | High mechanical strength | Chemical lines, marine duty, hygienic plants | Inline spring loaded, lift or piston |
| PP or PVDF | PP for moderate heat; PVDF handles hotter acids | Excellent chemical resistance | Lower than metal bodies | Chemical dosing, fume scrubber lines | Ball, diaphragm style checks |
| Cast steel | Suited to high temp and high pressure | Needs coating or alloy trim for corrosive media | High ratings | Steam, oil and gas, power plants | Lift or piston, tilting disc |
Notes we use in selection
Low temperature and low pressure: PVC or PP saves cost
Sea spray or brine: bronze or 316 stainless wins
High pressure and heat: cast steel or lift valve bodies
Dirty media: ball checks clear the seat better than many styles
Marine angle: UNIVALVE ships stainless steel valve bodies for corrosive duty at sea. For isolation we often see a gate valve upstream. For backflow control we place the check downstream. For codes and sourcing, IMPA valve references shorten RFQ steps.
Keep distance from pump discharge. Turbulence drops when we move the valve away from the pump.
Follow the straight-run rule. Leave several pipe diameters before circulators, elbows, tees, strainers. Less rattle, smoother seating.
Do and don’t
| Do | Don’t |
|---|---|
| Space the valve from the pump | Push it right against the volute |
| Give long, calm flow into the seat | Crowd it after elbows or tees |
| Plan access for tools | Box it behind other fittings |
Ball checks: vertical works best. Horizontal needs backpressure or a spring for closure.
Lift or piston checks: horizontal run preferred for alignment and tight seating.
Quick cues
Vertical riser → ball check first pick
Horizontal, high pressure → lift or piston style
Verify cracking pressure picks match the loop. Low ΔP system → low cracking pressure. High-pressure loop → higher setting for firm seating.
Watch the disc at normal flow. No flutter, no repeat cycling. Resize if we see chatter.
Prove full open and full close under expected ranges before handover.
A: Leave several straight pipe diameters from discharge; avoid elbows, tees, strainers upstream.
A: Likely oversized; the disc can’t stabilize at normal flow. Resize or raise cracking pressure.
A: Yes. Non-slam designs close before reversal; add hydraulic dampers for extra cushioning.
A: Yes, but it needs backpressure or a spring to close; vertical is preferred.
A: Usually no; they perform best on horizontal runs for guided seating.
A: Minimum upstream pressure to open; match to system ΔP to avoid losses and chatter.
Check valves keep flow one way and gear safe. Pick a type for the job—swing for low loss, lift or piston for pressure, ball for debris, silent for hammer control. Match cracking pressure to system head, media, space. Install smart: correct orientation, several straight diameters from disturbances, room for service. Size to stop chatter. Do these basics well and your system runs quieter, safer, longer—and costs less to maintain.
