When choosing a valve, do you know which one suits your needs best? Gate valves and ball valves each offer distinct advantages.Selecting the right valve is crucial for your system's efficiency. Whether you're dealing with pressure control or flow speed, each valve type excels in different scenarios.In this post, we'll explore the key differences between gate and ball valves and help you make an informed decision on which one to choose.
Definition and Mechanism:

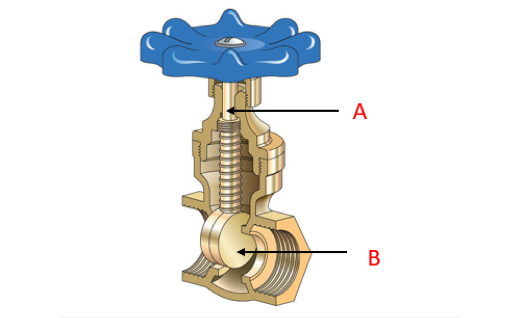

Gate valves are used to control the flow of fluids by lifting or lowering a rectangular gate within the valve. They typically require more than 360° of rotation to open or close fully, which makes them slower compared to quarter-turn valves, like ball valves. This mechanism is ideal when the goal is either full flow or complete shut-off, not gradual flow control.
Common Applications for Gate Valves:
Gate valves are commonly found in industries such as power plants, wastewater treatment facilities, mining, and process plants. They are used in large water supply lines and can be found in older home plumbing systems. Their design is especially well-suited for high-flow situations, where you need to either allow the full flow of a substance or stop it entirely.
Advantages of Gate Valves:
Minimal flow resistance when fully open.
Bidirectional flow, meaning it can work effectively in either direction.
Ideal for thick liquids like oil, making it a go-to valve for industries like oil and gas.
Disadvantages:
Gate valves are slower in operation due to their multi-turn design.
Not ideal for frequent or rapid shut-off. For fast, emergency shut-off, a ball valve may be a better choice.
Definition and Mechanism:

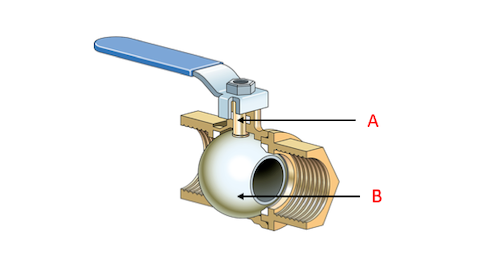

Ball valves use a pivoting ball with a bore (hole) through the center to control fluid flow. The ball rotates 90° to either allow or stop the flow. Unlike gate valves, ball valves require just a 90° turn to open or close, making them quicker and more efficient for on/off control. They can also come in multi-port versions, which allow for directing the flow in multiple directions.
Common Applications for Ball Valves:
Ball valves are widely used in industries such as oil & gas, automotive, food and beverage equipment, and pharmaceutical manufacturing. They are found in new plumbing systems due to their reliability and ease of operation. Whether it’s controlling gas flow in an industrial plant or regulating liquid flow in a food processing facility, ball valves are a versatile solution.
Advantages of Ball Valves:
Quick 90° turn for fast opening and closing.
Reliable, tight seals that minimize the risk of leaks, making them ideal for gas applications and high-pressure systems.
Versatile; works well with both liquids and gases.
Disadvantages:
If operated too quickly in high-pressure systems, ball valves may cause water hammer, which can damage the system.
Not suited for precise throttling or flow regulation, as the valve can wear out more quickly under such conditions.
As a manufacturer of various types of marine valves, Shanghai UNIVALVE Marine Equipment Co., Ltd. produces high-performance valves like ball valves and gate valves for use in critical applications such as shipbuilding, LNG systems, and more. Their products are crafted for extreme conditions, ensuring durability and reliability when it matters most.
Gate Valve Operation:
Gate valves take more than 360° to fully open or close. This slow motion makes them less efficient when fast operation is required. While ideal for large-scale systems that need full-on or full-off control, they aren’t the best choice for situations where speed matters.
Ball Valve Operation:
Ball valves, on the other hand, only need a 90° turn to open or close. This quick motion ensures faster operation. However, the speed of cycling can cause water hammer in high-pressure systems, which can lead to damage if not managed carefully.
Gate Valve Sealing:
Gate valves do a decent job sealing, but over time, especially in high-cycle environments, they are more prone to leakage. The seal’s integrity can weaken after multiple uses, making it less reliable for applications that need continuous sealing.
Ball Valve Sealing:
Ball valves are known for their exceptional sealing performance. The design ensures a tight seal, making them ideal for gas control or high-pressure applications. Their sealing quality reduces the chances of leakage, even after extended use.
Gate Valve Durability:
While gate valves are sturdy, they tend to wear down faster under high-cycle or high-pressure conditions. Regular maintenance and possible replacements are often needed, especially as corrosion can weaken the components over time.
Ball Valve Durability:
Ball valves are more durable and tend to last longer. Though they come with a higher upfront cost, their long-term performance and reduced maintenance make them a more cost-effective option in the long run.
Cost Comparison:
Gate valves are usually cheaper upfront but can incur higher long-term costs due to frequent maintenance, corrosion, or replacement needs. In contrast, ball valves are more expensive initially but provide greater durability and less frequent need for maintenance, making them a better investment over time.
Maintenance Needs:
Gate valves need routine maintenance, particularly in high-use applications. Over time, the valve may require repairs or replacement. Ball valves, especially three-piece designs, can be serviced without being removed from service, minimizing downtime. Their simpler design also means less maintenance overall.
Gate Valve Applications:
Gate valves excel in systems where operation is infrequent and large flow capacities are needed. They’re perfect for power plants, water supply systems, and mining operations. If you're dealing with thick liquids like oil, a gate valve might be your best bet due to its ability to handle such substances without creating excessive resistance. These valves work best in large systems where rapid opening and closing aren’t needed.
Ball Valve Applications:
Ball valves, however, are ideal for systems requiring frequent operation and fast shut-off. They’re used in chemical processing, automotive, pharmaceutical, and food production industries, where reliability and tight seals are crucial. Ball valves can handle both liquids and gases, making them versatile for various applications. Whether it's controlling flow in a water treatment plant or ensuring gas safety in a power station, ball valves deliver quick and secure operation.
Gate Valve:
Gate valves are usually the more budget-friendly choice. If you're working on a tight budget, and the valve doesn't need to be operated frequently, gate valves offer an excellent initial cost-saving solution. These valves are well-suited for large-scale projects where the focus is on flow regulation rather than quick shut-off.
Ball Valve:
Ball valves have a higher upfront cost but are more durable and require less maintenance. Over time, their durability, efficient sealing, and reduced maintenance make them a more cost-effective option for industries requiring consistent operation. When compared to gate valves, ball valves offer better long-term value for applications where valves need to open and close frequently or handle high-pressure situations.
Gate Valve Applications:
Gate valves are commonly used in industries like wastewater treatment, power plants, and mining. They are also found in large water supply lines and process plants, where controlling the flow is essential. In addition, gate valves are often seen in older plumbing systems and are used for shut-off services. Their ability to handle large volumes of water and liquids makes them essential in these applications.
Ideal for:
Applications requiring infrequent operation
Systems where low flow resistance is crucial, such as oil pipelines or water distribution networks.
Gate valves are not the go-to solution for fast operation, but they shine in environments where full flow or complete shut-off is needed without constant manipulation.
Ball Valve Applications:
Ball valves are widely used in industries such as oil & gas, food & beverage production, automotive, and pharmaceutical manufacturing. They are perfect for systems that require frequent operation, quick shut-off, and the need for tight seals to prevent leaks. Ball valves are also employed in systems dealing with high-pressure environments, where precise and reliable flow control is necessary.
Ideal for:
Newer plumbing systems
Irrigation systems and gas flow control
Chemical processes where a tight seal and quick shut-off are essential
Their versatility in handling both liquids and gases makes them a popular choice for applications requiring both flexibility and reliability. Whether it's a manufacturing facility or a chemical plant, ball valves keep things running smoothly.
At Shanghai UNIVALVE Marine Equipment Co., Ltd., ball valves and gate valves are part of the extensive product lineup for marine and industrial use. These valves, like high-temperature safety valves and stainless steel check valves, are designed to withstand harsh environments, ensuring seamless operation in challenging applications like LNG systems and shipbuilding.
Gate Valves:
Gate valves are better suited for high-pressure and high-temperature environments. They perform exceptionally well in power generation systems or heavy industrial applications, where temperatures and pressures can reach extreme levels. These valves are built to handle challenging conditions, ensuring consistent performance in demanding environments.
Ball Valves:
Ball valves are typically more suited to moderate pressure systems but can still handle high-pressure applications. They excel in environments where quick shut-offs and tight seals are necessary. However, they may not be as reliable as gate valves in extreme temperature situations. Still, they’re effective in many high-pressure setups, especially when used in industries like oil & gas or chemical processing.
Ball Valves:
Ball valves are best used for quick on/off control. They can rapidly open or close with just a 90° turn. However, they are not suitable for throttling or precise flow regulation. Their design is optimized for situations requiring full flow or complete shut-off, but not for adjusting the flow rate in between.
Gate Valves:
Gate valves are better for systems that require minimal pressure drop and consistent flow. When fully open, gate valves offer a straight, unobstructed path for fluid, which reduces flow resistance. These valves are ideal in applications where regulating flow is essential, such as large water supply lines or systems requiring reliable isolation without flow control.
Gate Valves:
Gate valves require more space for installation due to their multi-turn operation. To open or close the valve, you’ll need to rotate the handle multiple times, which requires additional space for the mechanism. They’re ideal in large systems where space is less of a concern, but for smaller setups, they might not be the best option.
Ball Valves:
Ball valves are more compact compared to gate valves. However, they require more space to operate due to their quarter-turn mechanism. The handle needs enough space to rotate fully, especially in larger sizes. Despite the larger space requirement for operation, their compact design makes them more suitable for installations where space efficiency is key.
Shanghai UNIVALVE Marine Equipment Co., Ltd. offers a range of valves, including ball valves and gate valves, tailored for demanding applications in industries like marine, oil & gas, and power generation. Their valves, such as high-pressure LNG valves and corrosion-resistant ball valves, are designed to perform under extreme conditions, ensuring long-term reliability in various operational settings.
Ball Valves for Throttling:
A common misconception is that ball valves can be used for throttling, or controlling flow gradually. However, ball valves are not designed for this purpose. Attempting to use a ball valve for throttling can damage the valve. The ball valve operates best in fully open or fully closed positions, and trying to adjust the flow in between can cause excessive wear and damage to the valve seat. For precise flow control, valves like globe or needle valves are a much better option.
Gate Valves for Flow Regulation:
While gate valves are great for stopping or allowing full flow, they are not ideal for precise flow regulation. When fully open, they provide a clear, unobstructed path for fluid to flow with minimal resistance. However, gate valves are not meant for fine control of flow rates. Their design doesn’t allow for accurate adjustment of the flow, making them less effective in situations where precise control is needed.
Gate valves require more turns to operate and are slower. They are ideal for large flow capacity and minimal resistance. Ball valves offer quick operation with tight sealing, making them better for applications needing fast shut-off and reliability.Choose a ball valve for fast operation and tight seals. Opt for a gate valve when large flow capacity and minimal flow resistance are more important.
A: The choice depends on the application. Ball valves are better for quick operation and tight sealing, while gate valves are ideal for large flow capacity and minimal flow resistance.
A: Ball valves are designed for quick fluid flow control and provide tight, reliable seals, making them ideal for on/off control.
A: Yes, gate valves are well-suited for high-pressure and high-temperature environments, making them ideal for power generation and industrial systems.
A: Yes, ball valves are effective for gas flow control due to their tight sealing, ensuring reliable and leak-free operation.
A: Ball valves require minimal maintenance but should be inspected regularly for leaks and wear, especially in high-cycle applications.
