Views: 0 Author: Site Editor Publish Time: 2025-08-11 Origin: Site
Ever wondered how industries control the flow of liquids and gases? Globe valves are key to this process.In this post, we’ll explore what a globe valve is, how it functions, and its importance in fluid control systems. You'll also learn about the different types of globe valves and their applications across industries.

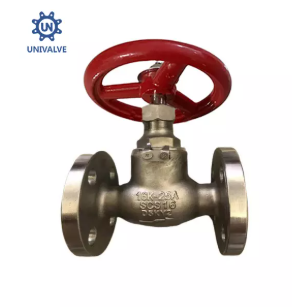

A globe valve is a type of valve used to control the flow of liquids or gases through pipes. Its design allows for precise regulation, making it an essential component in many industrial systems. The valve’s body, disc, stem, bonnet, and seat work together to control the flow effectively.
Valve body: The main structure that houses the internal components.
Disc: A movable part that opens or closes the valve to control flow.
Stem: Connects the disc to the actuator and enables movement.
Bonnet: Seals the valve’s internals and provides access for maintenance.
Seat: The part where the disc seals to stop or control the flow.
In globe valves, the term "linear motion valve" refers to the movement of the disc. Unlike other valves, the disc moves up or down in a straight line to regulate the flow, making globe valves ideal for throttling applications. This feature is why they’re sometimes called throttle valves.
The globe valve operates by adjusting the position of the disc relative to the seat. When the valve is open, the fluid flows between the disc and the seat, and the more the disc lifts, the higher the flow rate. As the disc moves closer to the seat, it restricts the flow.
This linear motion is perfect for controlling fluid flow, especially in systems where precise regulation is needed. Globe valves are typically used in cases where flow control is more important than reducing pressure loss.
The mechanism behind the operation ensures that fluids pass through the valve, experiencing a pressure drop along the way due to the restricted path. But this is a small tradeoff for the ability to finely tune the flow. In industries like marine engineering, such as with products from Shanghai UNIVALVE, these valves are crucial for systems requiring exact flow control, like in cooling water or fuel oil systems.
With globe valves, you can confidently regulate the flow in both on/off and throttling situations, ensuring your system operates efficiently.
A globe valve is made up of several key components, each playing a vital role in its operation:
Body: The main housing that holds the internal parts and connects to the pipeline.
Disc: This movable part sits against the seat and controls the flow by either blocking or regulating it.
Seat: The surface where the disc seals to prevent or control fluid flow.
Stem: The stem connects the disc to the actuator, enabling its movement.
Bonnet: Covers the valve body, seals the internals, and provides access for maintenance.
Actuator: Controls the movement of the stem, either manually or automatically (electric, pneumatic, or hydraulic).
The design of these components allows globe valves to handle fluid flow in both directions. This flexibility is particularly beneficial in systems where flow direction needs to be adjusted.
There are several variations of globe valves, each designed for specific applications:
T-Pattern Globe Valve: This is the most common design. Fluid changes direction twice inside the valve, which helps in regulating flow effectively. It is commonly used when precise throttling is needed but results in a higher pressure drop.
Angle Globe Valve: The inlet and outlet ports are at a right angle to each other, making it ideal for applications where space is limited or where fluid needs to change direction at 90°. It provides a lower pressure drop compared to the T-pattern valve.
Y-Pattern Globe Valve: The Y-pattern design reduces the severity of the flow direction change, offering a more direct flow path. This reduces pressure loss, making it ideal for high-flow applications where minimizing pressure loss is critical.
Welded vs. Bolted Bonnet: The bonnet can be either welded or bolted to the valve body. Bolted bonnets are easier to remove for maintenance, while welded bonnets provide better sealing in high-pressure systems.
Each type has its specific advantages, but choosing the right design depends on the system's requirements. For example, Shanghai UNIVALVE offers various designs suitable for harsh marine environments, such as T-pattern and angle globe valves for different flow regulation needs.
The materials used to construct globe valves directly impact their performance and durability in different conditions. Common materials include:
Cast Iron: Suitable for low-pressure systems, providing a cost-effective solution for general applications.
Cast Steel: Ideal for medium pressure and higher strength.
Stainless Steel: Often used in high-temperature applications due to its resistance to corrosion and oxidation.
Alloys: For extreme conditions, special alloys are used, particularly when handling highly corrosive fluids or temperatures above 350°C.
For high-temperature applications, like those in LNG systems, globe valves from UNIVALVE often feature stainless steel trims to resist seizing and galling, ensuring reliable performance even under tough conditions. The choice of material is crucial for the valve’s longevity, especially in demanding industries like shipbuilding or power generation.
Globe valves are designed to control fluid flow precisely, making them an essential tool in many industries. Their primary use is for throttling and regulating flow in systems where accuracy is critical.
Some common applications include:
Cooling systems: Regulating water or coolant flow in industrial cooling systems.
Fuel oil systems: Controlling the flow of fuel in power plants or marine engines.
Chemical feed systems: Managing the flow of chemicals in manufacturing or treatment processes.
They are also ideal for systems requiring precise modulation, like in boiler systems or turbine lube oil systems, where controlling flow is crucial to ensure efficiency and prevent damage.
In marine engineering, globe valves play a critical role. They’re often found in cooling water systems or as isolation valves in fuel oil systems on ships. These valves help regulate the flow of water or fuel, ensuring smooth operations in harsh environments.
Shanghai UNIVALVE specializes in these valves, providing high-quality products for marine applications that meet the strictest standards. Globe valves help manage everything from cooling to fuel systems in ships, contributing to overall safety and performance.
In industrial sectors, globe valves are commonly used in power plants, refineries, and chemical plants, where fluid regulation is essential. They ensure the precise control needed to maintain operational stability in complex systems.
While globe valves are great for many applications, there are some situations where they’re not the best choice. They should be avoided in systems involving slurries or thick liquids. The internal baffle in globe valves can clog, leading to ineffective operation or damage.
In such cases, other valves like gate valves or ball valves are more appropriate. Gate valves, for instance, are better suited for high-flow, low-pressure applications, while ball valves are ideal for quick on/off control in systems where precise flow regulation isn’t necessary.
In general, globe valves are perfect when you need fine control over flow, but for systems involving thick or viscous fluids, other types may be more effective.
Globe valves are known for their excellent control over fluid flow. Here are the key advantages:
Precise flow control and throttling: Globe valves allow you to make fine adjustments to the flow, ideal for applications where accuracy is needed.
Reliable shutoff capability: These valves can completely stop the flow when needed, ensuring reliable operation in critical systems.
Durability and ease of maintenance: Thanks to their simple design, globe valves are easy to maintain. The fewer components involved mean fewer things can go wrong, reducing downtime and maintenance costs.
Excellent for both on/off and regulating applications: Whether you need to completely stop the flow or regulate it, globe valves perform well in both scenarios.
Since globe valves have a straightforward design, maintaining them is often simpler than other valve types, which keeps operational costs low.
Despite their many benefits, globe valves come with some downsides:
Higher pressure drop: Globe valves cause a larger pressure drop compared to other valve types, like gate valves. This can affect system efficiency.
Slower operation: The multi-turn design means globe valves open and close more slowly than ball or gate valves. This can be a disadvantage in systems requiring quick response times.
More force required to operate: Due to their design, globe valves often need more force to operate, especially when used in high-pressure systems.
In certain conditions, globe valves can also suffer from cavitation and flashing in high-pressure differential situations, which could damage the valve and reduce its lifespan.
While globe valves are perfect for precise flow control, their drawbacks should be considered when choosing the best valve for specific applications.
Globe and gate valves serve different functions, and understanding their differences can help you choose the right one for your system.
Functionality: Globe valves are designed for precise flow regulation. They are perfect for applications where you need to control the flow, such as in chemical processing or turbine lube oil systems. On the other hand, gate valves are primarily used for on/off control, where fine modulation is not needed.
Operation: Globe valves require more turns to fully open or close, which makes them slower than gate valves. Gate valves typically open and close faster, making them ideal for systems where quick action is necessary.
Pressure Drop: Globe valves cause a higher pressure drop because of the flow path, which is more restrictive than the straight-through path of a gate valve.
When to use a globe valve: If you need flow regulation or throttling control, a globe valve is the right choice.
When to use a gate valve: For simple on/off control, where minimal pressure loss is critical, choose a gate valve.
Globe valves and ball valves are often compared due to their use in regulating flow, but they differ in several ways.
Speed of Operation: Ball valves are known for their quick operation. They can fully open or close in just a quarter turn, which is ideal for situations where speed is crucial, like in emergency shutoff systems.
Flow Regulation: Globe valves are better for throttling and precise flow control. They allow for gradual adjustments to the flow, making them perfect for fine-tuning in systems like cooling systems or fuel oil systems.
Suitability: Ball valves, however, are best for situations where the flow is either fully open or fully closed, and quick on/off operation is necessary.
When to use a globe valve: For precise flow control and throttling in systems requiring modulation.
When to use a ball valve: If you need a quick shutoff or simple on/off control.
Ball valves are faster, but globe valves excel when exact flow control is needed, especially in high-precision industries like marine and industrial applications.
Read More：《Gate Valve vs Ball Valve》
Choosing the right size and pressure rating for a globe valve is crucial for ensuring efficient system operation. If the valve is too small, it won’t be able to handle the required flow rate. If it’s too large, it may cause unnecessary pressure loss.
Size: Always match the valve size to the pipe diameter and the system’s flow requirements. Globe valves typically have a nominal pipe size that doesn’t exceed 12 inches. For larger systems, specialized designs can handle bigger sizes.
Pressure rating: Consider the system’s pressure and the valve’s pressure rating. If the pressure is too high, a valve with a higher pressure rating is needed to avoid failure or leaks.
Choosing the right size and pressure rating ensures optimal valve performance and system efficiency.
Actuators control the opening and closing of globe valves. There are several types of actuators to consider:
Manual actuators: These are operated by hand and are best for smaller systems or where automatic control isn’t necessary. They offer low upfront costs but require more labor.
Electric actuators: Ideal for systems requiring precise, automated control. They are easy to integrate into remote control systems but can be more expensive.
Pneumatic actuators: These are powered by compressed air and are often used in larger systems. They provide fast response times and are suitable for high-frequency operation.
For larger valves or high-pressure systems, powered actuators (electric or pneumatic) may be necessary for effective operation, providing better control and reducing manual effort.
Proper maintenance is key to extending the lifespan of globe valves. Here are some tips for ensuring your valve performs optimally for years to come:
Regular inspection: Check for leaks, pressure loss, or damage regularly. Early detection helps avoid costly repairs.
Lubrication: Proper lubrication of the valve stem and bonnet prevents seizing and wear, especially in high-pressure systems.
Fixing common issues: If the valve is leaking or the flow isn’t as controlled as it should be, inspect the disc and seat for damage. Worn-out components can be replaced or resurfaced to restore performance.
Routine maintenance, especially inspecting and lubricating critical parts, will reduce downtime and keep your globe valve working efficiently.
A: Globe valves provide precise flow control and throttling, making them ideal for applications requiring modulation. Ball valves, on the other hand, are quicker and better suited for on/off control, but less effective in throttling.
A: Yes, globe valves can be used in high-pressure systems. They are typically made of materials like stainless steel for high-temperature and high-pressure applications to prevent issues like seizing and galling.
A: Consider factors like the fluid type, pressure, temperature, and the level of flow control required. Globe valves are ideal when precise regulation and throttling are needed.
Globe valves are essential in regulating fluid flow, particularly in shipbuilding and marine engineering.They offer precise flow control, making them vital for various applications.For tailored solutions, consult experts like UNIVALVE, who provide custom globe valves designed for specific needs.
