Views: 0 Author: Site Editor Publish Time: 2025-08-15 Origin: Site
Ever wondered how valves control the flow in ships and offshore systems? Butterfly valves are key players in marine and offshore engineering. These compact, cost-effective valves ensure smooth fluid control, even in extreme conditions.In this post, you’ll learn what butterfly valves are, how they work, and their critical applications in marine systems. We’ll also explore the different types and industries that rely on them.

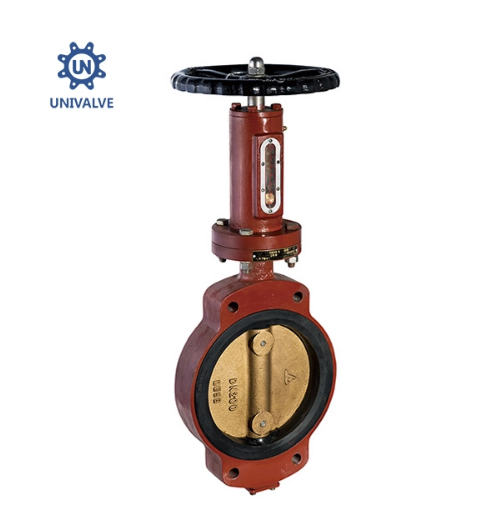

A butterfly valve is a type of valve used to control the flow of fluid in pipes. It has a simple and compact design, making it a cost-effective and space-saving solution. The key feature of a butterfly valve is its 90° rotation, which allows for quick opening and closing.
The valve consists of a disc connected to a rod. When the valve opens, the disc rotates to allow fluid to pass through. When closed, the disc is perpendicular to the flow, blocking the fluid. This simple yet effective construction makes butterfly valves a go-to choice for many applications.
Butterfly valves are popular due to their several advantages over other valve types. They are lightweight and have a compact design, making them perfect for systems where space is limited. They also offer fast operation, which is ideal for situations requiring quick shutoff or frequent valve operation.
These valves are widely used in many industries, including water treatment, chemical processing, HVAC systems, oil and gas, and food and beverage industries. Butterfly valves can handle a range of fluid types, from water to gases and even more complex substances.
They are suitable for both large and small piping systems, especially where rapid shutoff and frequent use are needed. Their versatility and efficiency make them a critical component in systems requiring reliable, low-maintenance flow control. At UNIVALVE, we specialize in marine valves, including butterfly valves, ensuring smooth operation even in extreme conditions like -196°C.
Butterfly valves are designed to work with a simple quarter-turn operation. A 90° rotation opens or closes the valve. The disc inside the valve moves to control fluid flow. When the valve is fully open, the disc is aligned parallel to the flow, allowing fluid to pass. When closed, the disc is perpendicular to the flow, stopping the flow completely.
The handle on the valve turns the stem, which in turn rotates the disc. When closed, the disc seals against the valve seat to prevent leakage. The speed and ease of operation make butterfly valves ideal for rapid shutoff.
The angle of the disc also plays a significant role in controlling the flow rate. Butterfly valves are not only used for simple on/off control but can also modulate flow, making them versatile in various systems.
Valve Body: This is the outer structure that holds all internal components. It is typically made of durable materials like cast iron or stainless steel.
Disc: The rotating part of the valve, responsible for controlling fluid flow.
Stem: The component that connects the disc to the actuator, allowing the disc to rotate when the valve is operated.
Seat: The part that creates a seal when the valve is closed, preventing leakage. It can be made of resilient materials or metal.
Actuator: This is the mechanism that moves the disc. It can be manual, electric, pneumatic, or hydraulic, depending on the application.
Wafer and Lug Type: Wafer-type butterfly valves have a simpler design and are commonly used in standard applications. Lug-type valves are more complex and are designed for end-of-line services, offering isolation options without shutting down the entire system.
Seals: These are used to ensure a tight seal between the valve body and the disc, preventing leaks. Seals can be made of resilient materials like EPDM or metal for high-pressure applications.
The angle of the disc has a direct impact on the flow rate. When the disc is partially open, it allows a controlled amount of fluid to pass through. As the disc rotates further, the flow rate increases. Butterfly valves allow incremental control over fluid flow, making them suitable for modulating systems.
However, they are best suited for on/off control. The disc's position affects how tightly the valve seals when closed, which is critical in preventing leaks. With its simple design and ease of operation, butterfly valves are ideal for many industries, including marine systems, where reliable performance under extreme conditions is essential.
Wafer-type butterfly valves are designed to fit between two pipe flanges, with bolt holes aligning directly to the pipeline connections. This design makes them easy to install and compact in size, which is great for systems where space is limited.
Pros:
Simple installation
Compact design
These valves are perfect for applications where you need a space-saving solution and easy installation, such as water treatment systems or smaller piping setups.
Lug-type butterfly valves have threaded holes on both sides, allowing bolts to connect directly to the pipeline flanges. This design is ideal for end-of-line services because it allows for isolation of the pipeline at one end.
Isolation Capability:
Pipeline can be isolated at one end for maintenance without affecting the rest of the system.
Advantages:
Easy isolation
Flexible installation
Lug-type butterfly valves are commonly used in situations where maintenance needs to be performed without disrupting the entire system, such as in fire protection or industrial water systems.

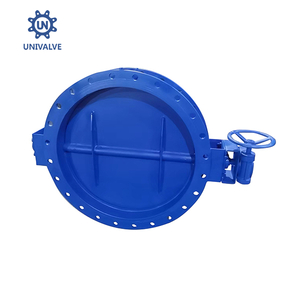

Double offset butterfly valves, also known as high-performance valves, feature two offsets in the valve's design. These offsets create a cam action, reducing friction and wear between the disc and seat, which enhances sealing performance.
Design Feature:
Two offsets in the stem design
Cam action reduces wear and improves the seal
Advantages:
High-pressure resistance
Longer service life
Reduced operating torque
These valves are perfect for high-pressure and high-temperature environments like power generation, chemical processing, and oil and gas. They ensure reliable performance in extreme conditions, making them ideal for heavy-duty applications.
Triple offset butterfly valves go a step further by adding a third offset in the design. This unique feature improves sealing by reducing contact between the disc and the seat. The result is a nearly zero-leakage valve.
Design Feature:
Three offsets reduce contact between the disc and seat, improving sealing performance
Benefits:
Zero leakage
Long service life
Suitable for high-pressure and high-temperature systems
These valves are widely used in critical applications like steam, chemical refining, and offshore oil and gas industries, where reliability and minimal leakage are paramount.
Manual actuation is simple and inexpensive, often used for smaller valves. It typically involves either a squeeze lever or a hand wheel and gearbox.
Squeeze Lever: This is commonly used for small butterfly valves. It’s easy to operate but ideal for infrequent use.
Hand Wheel and Gearbox: Larger butterfly valves often use a hand wheel and gearbox. This increases the torque needed to operate the valve but slows down the actuation speed.
Advantages:
Cost-effective and straightforward
Ideal for smaller applications where fast and frequent actuation is not needed

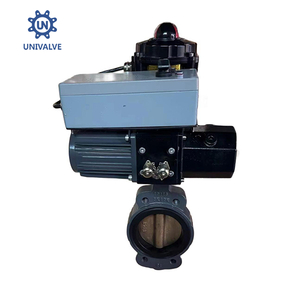

Electric actuators provide precise control and are perfect for automating valve operations. They offer easy integration into control systems for applications requiring remote operation.
Electric Actuators: These actuators use an electric motor to move the valve, providing reliable and repeatable movement.
Benefits:
Suitable for remote control and automation
Common in industries such as pharmaceuticals, chemicals, and food processing
Electric actuation is a top choice when accuracy, control, and automation are key.
Pneumatic actuators use compressed air to operate butterfly valves, offering rapid actuation. They are commonly used where speed and reliability are critical.
Pneumatic Actuators: These are typically used for fast and reliable operation in environments where electrical actuators might pose risks, such as in explosive or hazardous areas.
Advantages:
Quick response times
Reliable in hazardous environments
Fail-safe operation
Pneumatic actuators are popular in chemical processing, oil and gas industries, where reliable, fast actuation is essential.
Hydraulic actuators are used in high-pressure applications, where large torque is needed to operate the valve. These actuators are built to handle demanding environments.
Hydraulic Actuators: They operate using fluid pressure, providing the strength necessary for heavy-duty applications.
Benefits:
Ideal for high-pressure or high-viscosity applications
Provides heavy-duty performance and durability
Hydraulic actuators are best for industries like power generation, oil and gas, where durability and the ability to handle extreme conditions are essential.
Butterfly valves are widely used in water distribution systems, pumping stations, and treatment plants. They provide effective flow control, ensuring smooth operation in the treatment process.
Flow Control: They regulate the flow of water efficiently, preventing overloads and ensuring continuous flow.
Isolation: Butterfly valves offer reliable isolation, ensuring easy maintenance and system adjustments without shutting down the entire pipeline.
In the oil and gas industry, butterfly valves play a key role in controlling the flow of oil, gas, and other fluids through pipelines. These valves are essential for maintaining the integrity and efficiency of pipeline systems.
Pipeline Systems: Butterfly valves are used to ensure smooth flow, even in the harshest conditions.
Corrosion Resistance: Materials like stainless steel are commonly used to handle the extreme conditions of the oil and gas industry, providing durability and long-term reliability.
Butterfly valves are ideal for applications in the chemical industry, where controlling corrosive fluids is critical. These valves are made from materials like stainless steel or PTFE to ensure durability.
Handling Corrosive Fluids: Their design allows them to safely manage aggressive chemicals without compromising system integrity.
Flow Regulation: They ensure accurate fluid flow regulation, enhancing both safety and efficiency in chemical processing.
In HVAC (Heating, Ventilation, and Air Conditioning) systems, butterfly valves are essential for regulating airflow and maintaining the right pressure levels.
Airflow Control: Butterfly valves help control the flow of air, making sure heating and cooling systems work optimally.
Energy Efficiency: Their compact design and ability to reduce pressure drop make butterfly valves a smart choice for improving energy efficiency in HVAC systems.
The food and beverage industry relies on sanitary butterfly valves to ensure hygiene and safety during fluid flow control in processing systems.
Sanitary Applications: Butterfly valves made of materials like stainless steel and EPDM are used to meet stringent food safety standards.
Material Considerations: These materials are chosen to ensure compliance with industry regulations, preventing contamination and maintaining product quality.
Butterfly valves are a crucial component in marine and offshore engineering systems. In these applications, they are used for regulating the flow of fluids under harsh conditions, such as extreme temperatures or high pressures.
Marine Applications: Butterfly valves are commonly found in ship systems, including ballast systems and fuel management systems.
Offshore Use: In offshore platforms, butterfly valves help control the flow of oil, gas, and other fluids, ensuring system reliability even in extreme environments.
Durability: Marine butterfly valves are designed to resist corrosion from saltwater and handle high pressures, making them essential for safe and efficient operations.
At UNIVALVE, we specialize in marine valves, including high-performance butterfly valves, ensuring they withstand the harshest conditions in marine and offshore systems.
Butterfly valves are perfect for systems with limited space. Their compact design means they require less room for installation compared to other valve types.
Space-Saving: Their smaller footprint reduces the need for large, complex piping systems.
Reduced Installation Complexity: Easier to install, saving both time and money.
This makes butterfly valves a great choice for tight spaces, such as in water treatment plants or small ship systems.
One of the biggest advantages of butterfly valves is their cost-effectiveness. Their simple design uses fewer parts, which reduces both manufacturing and maintenance costs.
Lower Production Costs: Fewer parts mean cheaper manufacturing.
Lower Maintenance Costs: Butterfly valves require less upkeep over their lifespan.
Especially beneficial for large-scale applications where other valves might be too expensive.
Their affordability makes them ideal for industries like chemical processing, where valves are needed in large numbers.
Butterfly valves offer quick operation due to their 90° rotation, allowing them to open and close rapidly. This feature makes them perfect for systems requiring frequent operation.
Quick Open and Close: A 90° rotation offers fast shutoff and flow control.
Ideal for Frequent Use: Whether for on/off control or flow regulation, butterfly valves provide quick, reliable performance.
This makes them especially useful in critical systems like HVAC, where speed and efficiency are essential.
Butterfly valves are designed with fewer moving parts, which reduces wear and tear over time. Their simple design translates into long-term durability and minimal maintenance.
Fewer Moving Parts: Less friction means less maintenance and lower risk of failure.
High-Performance Models: Double and triple offset butterfly valves are built for demanding applications, ensuring long-term performance even in high-pressure environments.
This makes butterfly valves ideal for heavy-duty applications in industries like power generation and marine systems.
Choosing the right size and pressure rating for your butterfly valve is essential for ensuring the valve can handle the system’s flow and pressure demands.
Valve Size: The size of the valve must match the pipe diameter. It ensures proper flow and prevents pressure build-up.
Pressure Ratings: Butterfly valves come with various pressure ratings. Always check the maximum pressure the valve can handle to avoid failure.
Selecting the right size and pressure rating prevents leaks and ensures smooth operation.
The material of the butterfly valve is critical, especially when handling fluids at high or low temperatures.
Material Considerations: Choose materials like stainless steel for high-temperature applications or EPDM for moderate temperatures.
Fluid Compatibility: The valve must be compatible with the fluid being controlled, such as corrosive chemicals or water.
For example, PTFE valves are ideal for handling aggressive chemicals, while stainless steel works best in high-pressure systems. Choosing the right material is essential for durability and safe operation.
The actuation method determines how the valve will be operated. Consider the level of automation and control needed for the system.
Manual Actuation: Best for simple systems or infrequent use.
Electric Actuation: Ideal for automated, high-precision control.
Pneumatic Actuation: Works well in systems requiring fast operation and reliability.
Hydraulic Actuation: Suitable for high-pressure applications needing large torque.
For systems requiring remote control and automated operation, electric actuators are the best choice.
Butterfly valves are available in two main connection types: wafer and lug.
Wafer-Type: Installed between two pipe flanges. Simple and cost-effective, but not suitable for end-of-line services.
Lug-Type: Features threaded holes that allow for easy isolation at the end of the pipeline.
When selecting a connection type, consider whether isolation is needed. If maintenance or servicing is required at the end of the line, a lug-type valve is a better choice.
Leaking seals are one of the most common issues with butterfly valves. The valve seal is critical for preventing leaks when the valve is closed. Several factors can cause seal failure, including wear, improper installation, or material degradation.
Causes of Leaks: Over time, seals may wear out due to frequent use or exposure to harsh chemicals. Incorrect installation or poor maintenance can also lead to leakage.
Preventing Leaks: Regularly check the valve seals for damage. Ensure the valve is correctly installed and the appropriate seal material is used for the application.
Troubleshooting Steps:
Inspect the valve seal for signs of wear or damage.
Check if the valve is correctly aligned and seated.
Replace worn seals promptly to maintain proper sealing performance.
Excessive throttling is a common cause of damage to the butterfly valve disc. When the disc is partially open for prolonged periods, it can wear out quickly, reducing its efficiency and lifespan.
Why Throttling Causes Damage: When the valve disc is not fully open or closed, it rubs against the seat, causing unnecessary friction and wear. This can also lead to poor sealing performance.
Extending Disc Life: Use butterfly valves primarily for on/off control rather than throttling. If throttling is required, choose a valve specifically designed for that purpose to reduce wear.
Tips for Disc Care:
Avoid using the valve in throttling applications for long periods.
Select the right type of valve for modulating flow if needed.
Regularly inspect the disc for signs of wear and replace it if necessary.
Corrosion is a major concern for butterfly valves, especially in environments where fluids are aggressive or contain particles that can cause wear.
Choosing the Right Materials: To prevent corrosion, select materials like stainless steel, PTFE, or other corrosion-resistant alloys for valves exposed to aggressive fluids.
Signs of Corrosion: Look for rust, pitting, or discoloration on the valve body or disc, which can indicate that the material has been compromised.
Mitigating Corrosion:
Regularly inspect the valve for signs of corrosion.
Ensure the valve material is compatible with the fluid being handled.
For harsh environments, use coatings or materials specifically designed to resist corrosion.
Proper selection of materials and regular maintenance can prevent these issues and ensure the longevity of butterfly valves.
A: Butterfly valves are compact, lightweight, and ideal for quick opening/closing with a 90° rotation. Ball valves offer tighter sealing and are often used for higher pressure applications.
A: Yes, butterfly valves can modulate flow, but excessive throttling can damage the disc. They work best for on/off control.
A: Technically, butterfly valves can be installed upside down, but it can lead to poor sealing and increased turbulence.
A: Industries such as water treatment, chemical processing, oil and gas, HVAC, and marine systems commonly use butterfly valves.
Butterfly valves are simple, cost-effective, and efficient solutions for controlling fluid flow. Their compact design and fast actuation make them ideal for many applications. They are versatile and reliable, serving industries from water treatment to chemical processing. Whether for on/off control or flow regulation, butterfly valves provide excellent performance, making them a top choice in modern industrial systems.
