Views: 0 Author: Site Editor Publish Time: 2025-07-09 Origin: Site
You need to set diesel engine valve clearance between 0.010” and 0.012”. This exact clearance helps your diesel engine work well. It makes sure each valve opens and closes at the right time. Keeping the valves adjusted right helps your engine stay strong. It also helps save fuel and keeps the engine working well. If the clearance is not right, your engine can lose power. It might use more fuel or be hard to start. Checking and adjusting diesel engine valves is important maintenance. Many people who work on boats trust marine valve solutions from Shanghai UNIVALVE Marine Equipment Co., Ltd. These help engines stay reliable at sea.
Set diesel engine valve clearance between 0.010” and 0.012”. This helps the engine stay strong and use less fuel. Intake and exhaust valves need different clearances. They get hot in different ways. Always check both types of valves carefully. Adjust valves only when the engine is cool. Use the right tools and follow the correct steps. This helps you avoid damage. Check the valves often, every 500 to 1,000 hours. This stops engine problems like losing power or running rough. It also helps you avoid expensive repairs. Use certified marine valves from trusted companies. Companies like Shanghai UNIVALVE make safe and reliable valves. This keeps your engine working well.

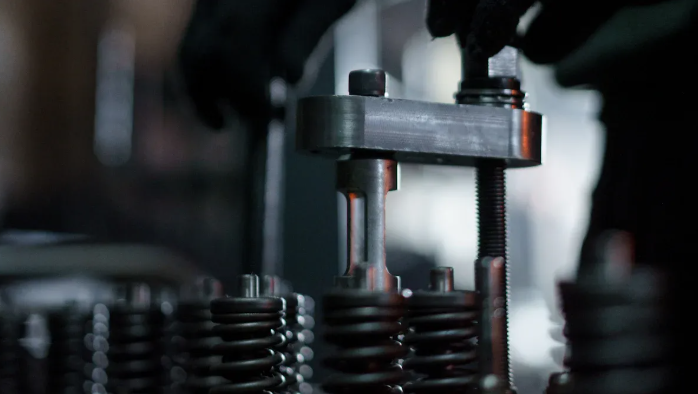

Valve clearance, or valve lash, is a tiny space between the rocker arm and valve stem in your diesel engine. This space is very important for the valves to work right. If the gap is too small or too big, the engine can have trouble. You check valve lash when the engine is cold. Use a feeler gauge to measure it. The gauge should fit between the rocker arm and valve stem with a little bit of drag. Most diesel engines need a gap between 0.010” and 0.012”. Always look in your engine manual for the exact number.
Tip: Always check valve lash when the engine is cool. Heat makes metal parts get bigger. This can change your measurement and make the adjustment wrong.
You must follow the manufacturer’s rules for valve adjustment. Each engine has its own tight limits. Using the wrong gap can make noise, lose power, or even break parts.
Diesel engines have both intake and exhaust valves. These valves let air in and push exhaust out of the combustion chamber. Intake and exhaust valves often need different gaps. Intake valves usually have a bigger gap because they stay cooler. Exhaust valves get hotter and need a smaller gap to handle the heat and wear.
Intake valves use lower-alloy steels and work with cooler air.
Exhaust valves are made from hard alloy steel or special metals to handle heat.
Exhaust valve lash is smaller and more important for how the engine runs.
If you set the exhaust valve gap wrong, the valve may open late or close early. This can mess up timing and hurt the engine.
You must check both intake and exhaust valves every time you adjust them. Never guess that both need the same gap.

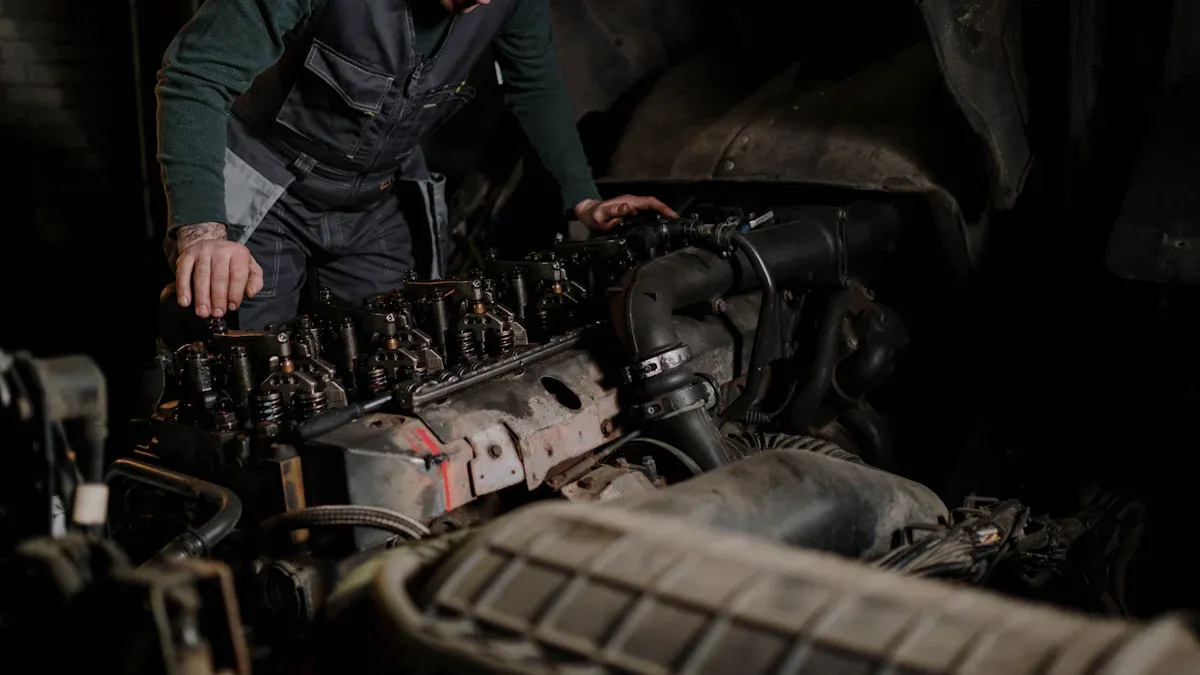

You need to be careful when adjusting diesel engine valves. Here are the steps:
Let the engine cool all the way. Never adjust hot valves.
Disconnect the battery so the engine cannot start by accident.
Take off the valve cover and clean the area with a lint-free cloth.
Turn the crankshaft until the piston for the cylinder you are working on is at top dead center (TDC) on the compression stroke. You can find TDC by looking for marks or feeling if the rocker arms are loose.
Put the right feeler gauge between the rocker arm and valve stem. The gauge should move with a little drag.
If the gap is not right, loosen the locknut and turn the screw until the gap is correct.
Hold the screw still and tighten the locknut to the right tightness.
Check the valve lash again with the feeler gauge to make sure it is right.
Do these steps for all intake and exhaust valves. Turn the crankshaft as needed to get each piston to TDC.
When you finish, put the valve cover back on with a new gasket and tighten the bolts to the right tightness.
Reconnect the battery and start the engine. Listen for strange sounds and make sure it runs smoothly.
Safety Note: Always use the right tools, like a good feeler gauge and a torque wrench. Always check your work again. Mistakes can make the engine noisy, run rough, or even break the valves.
You should adjust the valves every 500 hours or as your engine maker says. Doing this on time helps stop problems and keeps your diesel engine running well.
There are many kinds of marine valve in diesel engine systems. Each one has a special job to keep the engine safe and working well. Here are some common marine valve types and what they do:
Valve Type | Primary Function |
|---|---|
Diesel Fuel Shut-off Valve | Stops fuel flow fast for safety. |
Diesel Quantity Control Valve | Controls how much fuel goes to the pump. This changes power and efficiency. |
Diesel Fuel Pressure Relief Valve | Lowers pressure spikes to protect engine parts. |
Globe Valve | Starts, stops, or controls flow in fuel and cooling systems. |
Gate Valve | Lets flow through or stops it. It is mostly used to shut off flow. |
Check Valve | Stops fluids from going backwards. |
Ball Valve | Shuts off flow quickly and is easy to use. |
Butterfly Valve | Uses a disc to control flow. It works well for big pipes. |
SDNR Valve (Screw Down Non Return) | Stops flow and keeps it from going backwards. It is often used for safety. |
Always pick the right marine valve for each system. This helps your engine work safely and smoothly.
Shanghai UNIVALVE Marine Equipment Co., Ltd. is a trusted company in the marine valve business. They offer many kinds of marine valve, like high and low pressure marine valve, cargo oil valves, methanol and LNG cryogenic valves, and more. The company makes almost a thousand types of valves. These include globe, gate, check, butterfly, ball, and SDNR valves. They use materials like cast iron, steel, copper, and stainless steel. Their valves fit pressure ratings from 0.1 Mpa to 10 Mpa and sizes from DN20mm to DN1000mm.
You can trust every marine valve from Shanghai UNIVALVE. The company follows strict rules, such as GB, CB, CBM, ISO, and JIS. Their products have certificates from top groups like LR, ABS, BV, DNV/GL, NK, KR, CCS, RINA, and RS. These certificates show that each marine valve is safe and high quality.
Certified marine valve products help protect your engine. They make sure flow control and pressure relief work right. This lowers the chance of problems and keeps your vessel running well.
Shanghai UNIVALVE uses modern equipment and a strong quality system. Their valves pass hard tests for safety and performance. When you pick certified marine valve products, you help your diesel engine stay safe and reliable at sea.
You help your engine stay healthy by adjusting the valves often. When you set the valves right, your engine runs better. It gives you the power you need. This also helps save fuel and makes the engine work well. You make less pollution, too. If you skip this job, your diesel engine can lose power. It might use more fuel and make more smoke. Checking and fixing the valves keeps your engine strong. It also helps your boat stay safe and reliable.
Setting the valves too tight or too loose can hurt your engine. Here are some problems that can happen if you do not adjust them right:
Bent valves can happen if the timing is wrong. The piston can hit the valve. This can break parts and cause leaks.
Burnt valves happen when too much heat hurts the valve. This is worse for exhaust valves. It can make cracks and bad seals.
Wrong valve shim size can make the camshaft and valve wear out faster.
Overheating can happen if the valves do not close all the way. Hot gases get trapped inside.
Bad fuel use and rough running can come from poor burning.
Engine knocking, rough idle, and backfiring can mean valve trouble.
Rocker arms and lifters can wear out early if the gap is wrong.
Always follow the right steps to adjust the valves. This helps you avoid these problems.
You can tell if your engine needs valve adjustment by how it acts. Look for these signs:
Loud clicking or tapping when you start the engine
Less engine power, mostly when going fast
More smoke or strange stuff coming from the exhaust
Using more fuel and getting worse gas mileage
Exhaust gases leaking past the valve, which hurts how the engine works
If you see any of these signs, get a valve adjustment soon. Checking the valves often stops big problems. It keeps your diesel engine working its best.
You should check your engine valves on a set schedule. Most marine engine makers tell you when to do this job. Here are some common rules:
Diesel Services of America says to check valve clearance every 500 hours or every two years.
FNM Marine says to check and adjust valve tip clearances at 1,000 hours.
These checks are part of a bigger engine care plan with other jobs.
Different engines have their own schedules. Here is how some popular marine engines compare:
Engine Type | Initial Valve Adjustment | Subsequent Valve Adjustment Interval |
|---|---|---|
Caterpillar Marine | At first oil change (break-in) | Every 1,000 to 3,000 hours |
MAN Common Rail | N/A | At 400 hours, 800 hours, then every 800 hours |
You should always look in your engine manual for the right time. Some engines need checks more often, especially if you use them hard. Keeping up with valve checks helps stop problems and keeps your engine strong.
You might ask if you can do this job yourself or need a pro. Valve adjustment is an important part of engine care. It takes careful work and the right tools. Here are some things to think about:
You must know your engine and follow the manual.
You need special tools like feeler gauges and torque wrenches.
Safety is most important. Always disconnect the battery and wear safety gear.
If you are good with tools and know your engine, you can try a simple adjustment. This can save money and help you learn more about your boat.
If you are not sure, or if the job seems too hard, you should hire a certified technician. Trained pros have the right skills and tools. They can also find other problems while working.
Note: Professional technicians often finish special training and get certificates. These programs teach them how to check, adjust, and fix marine diesel engines safely and the right way.
You should always put safety and your engine first. If you are not sure, let a professional take care of your engine.
You help your engine last longer by adjusting valves on time. Taking care of valves stops misfires and power loss. It also saves you from expensive repairs.
You stop hard starts, rough running, and more smoke.
Your engine stays strong for a long time.
Shanghai UNIVALVE Marine Equipment Co., Ltd. makes trusted marine valve products. Their valves go through tough tests and have ISO 20000 certification.
Product Feature | Details |
|---|---|
Valve Types | Butterfly, gate, globe |
Testing Facilities | Water, hydraulic, air, torque, low temperature |
Certification | ISO 20000 |
Pick certified valves and stick to a set schedule. This helps your engine stay safe and work well at sea.
You need to check valve clearance after 500 to 1,000 hours. Always look at your engine manual for the right time. Checking often helps stop big repairs and keeps your engine strong.
Tight valves can make the engine too hot and hurt the valves. You might hear tapping sounds or lose engine power. Always use the right gap to keep your engine safe.
You can adjust valves if you have the right tools and know-how. Always read your engine manual before you start. If you are not sure, get a trained technician to do it for safety.
Intake and exhaust valves work with different heat and pressure. Exhaust valves get hotter, so they need a smaller gap. Intake valves stay cooler and usually need a bigger gap.
